System Overview

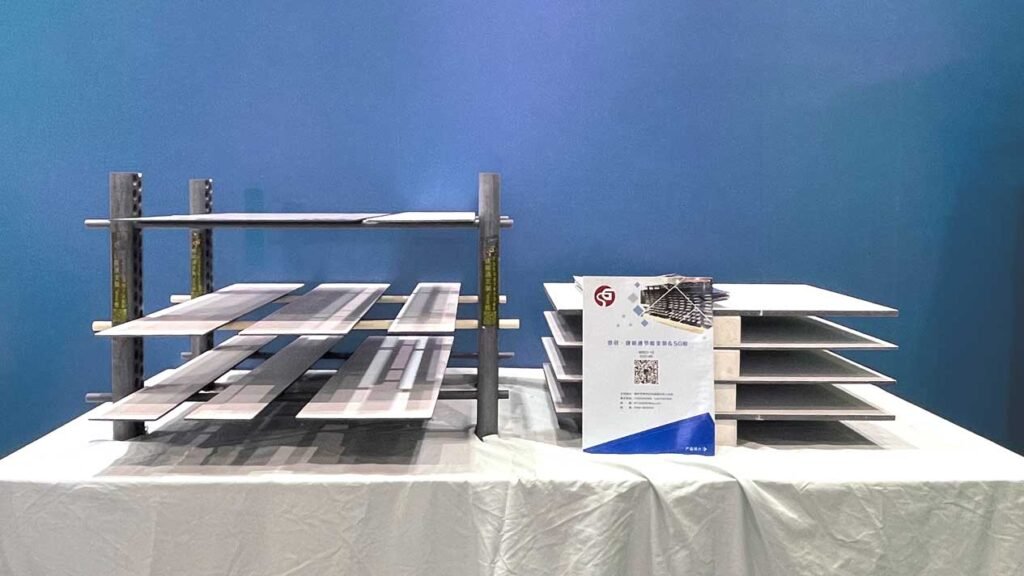

Post-and-beam (L) · Shelf-and-block (R)
How Kiln Furniture Works Together
Kiln furniture functions as a coordinated load-bearing system inside the kiln. Shelves, support components, and accessories work together to carry ceramic ware.
In practice, kiln furniture configurations are primarily determined by kiln type, product size and shape, firing temperature, and established operating practices.
Below are two common kiln furniture configurations used in ceramic production.

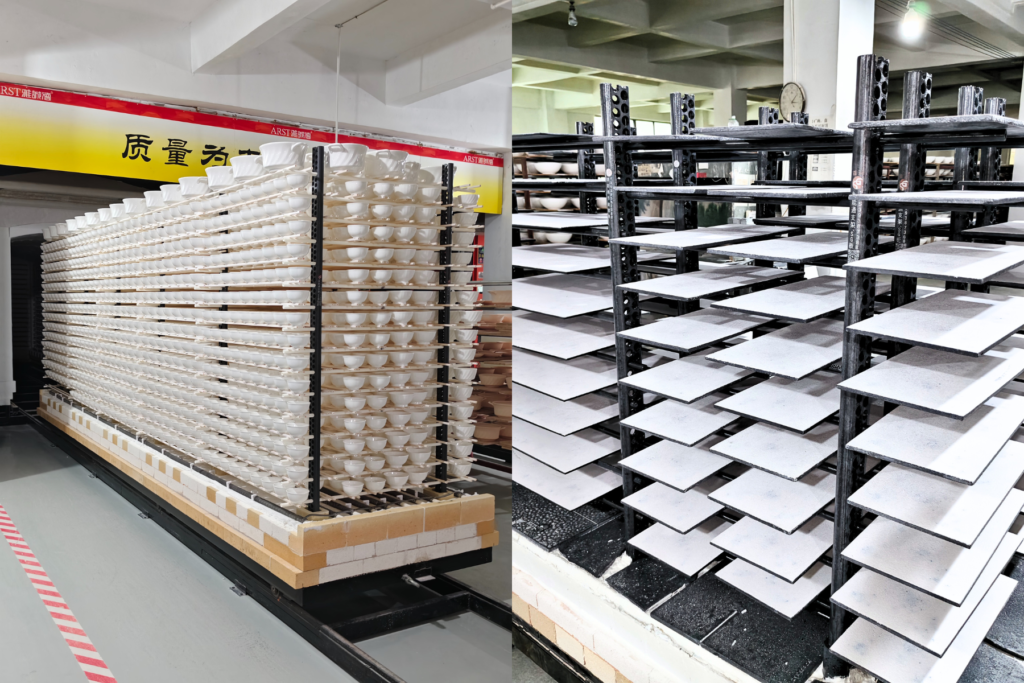

Post-and-beam Configuration
• Component
Posts · Beams · Rods · Shelves
• Materials
Posts (SiC) · Beams/Rods (SiC or Corundum) · Shelves (SiC / RBSiC / Pressureless-sintered SiC and other SiC options)
• Key features
Adjustable height · High load capacity · Stable structure · Energy-efficient · Customizable
• Typical kilns
Shuttle · Tunnel · Electric/Gas

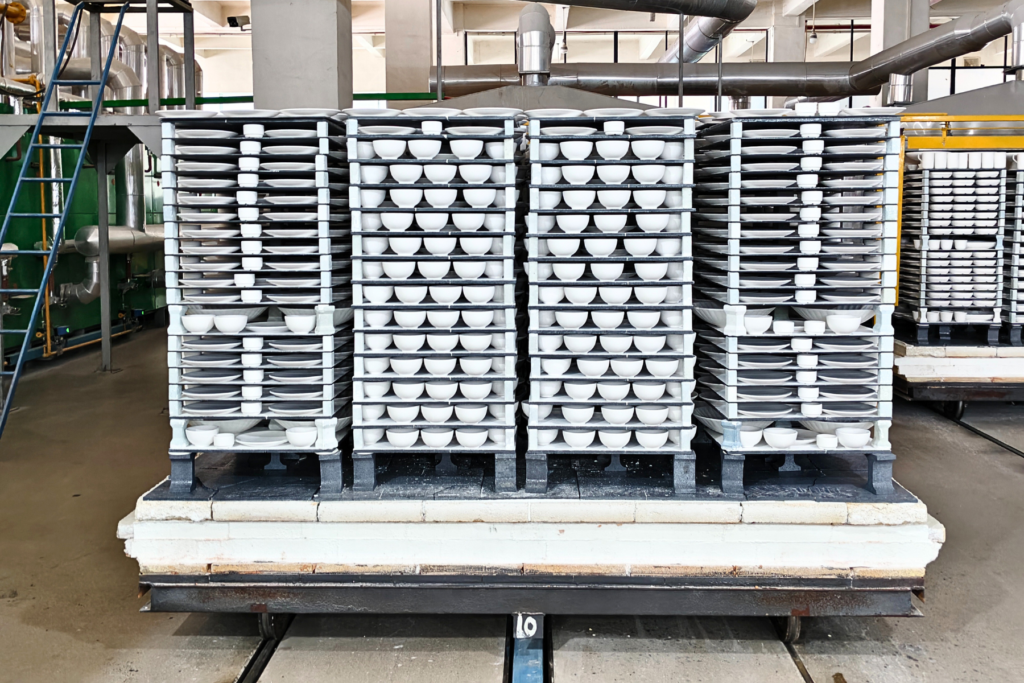

Shelf-and-block Configuration
• Component
Kiln shelves · Mullite blocks
• Materials
Shelves (SiC / RBSiC / Pressureless-sintered SiC and other options) · Blocks (Mullite)
• Key features
Adjustable height · High load capacity · Cost-efficient · Easy to assemble · Customizable
• Typical kilns
Shuttle · Tunnel · Roller · Electric/Gas
Field-Validated Quality
To ensure consistent and reliable performance across batches and different firing environment, we apply a standardized 3-step quality assurance process.
Pre-shipment Inspection
Each batch undergoes dimensional verification and test firing (when applicable) before delivery.
Factory-Kiln Validation
We validate performance through firing trials in our clients’ factory kilns, ensuring low spalling (debris shedding), strong thermal shock resistance, dimensional stability, and consistent service life under production conditions.
Post-Delivery Follow-Up
After delivery, we follow up real production feedback, tracking service life and key performance changes to continuously improve consistency and quality.
Key Benefits of Shouguan Product
• Proven High-Temperature Performance
Engineered for stable performance at high temperatures, with strong thermal shock resistance, low residue during firing, and dimensional stability under repeated firing cycles.
• Consistent Quality
Standardized quality control and real production feedback help ensure consistent performance across batches, kiln types, and product types.
• Cost-Effective in Use
Designed for long service life and dimensional stability—helping reduce replacement frequency and maintenance costs.
• Expert Support
Share your kiln type, firing curve, and product/load details—our team provides practical recommendations on material selection, sizing, and kiln setup
FAQ
How do I choose the right kiln furniture grade/material?
It depends on your kiln type, maximum firing temperature, product size and load, surface cleanliness requirements, and budget. Share your firing conditions with us—we’ll recommend the most suitable solution.
What information is needed for a quick recommendation or quote?
To provide an accurate solution, please specify:
Kiln Type & Max Temperature
Product Type (e.g., Sanitaryware, Tableware, Technical Ceramics)
Required Dimensions (L x W x H) & Thickness
Estimated Quantity
Destination & Required Lead Time
Do you provide complete kiln furniture solutions (not just one product)?

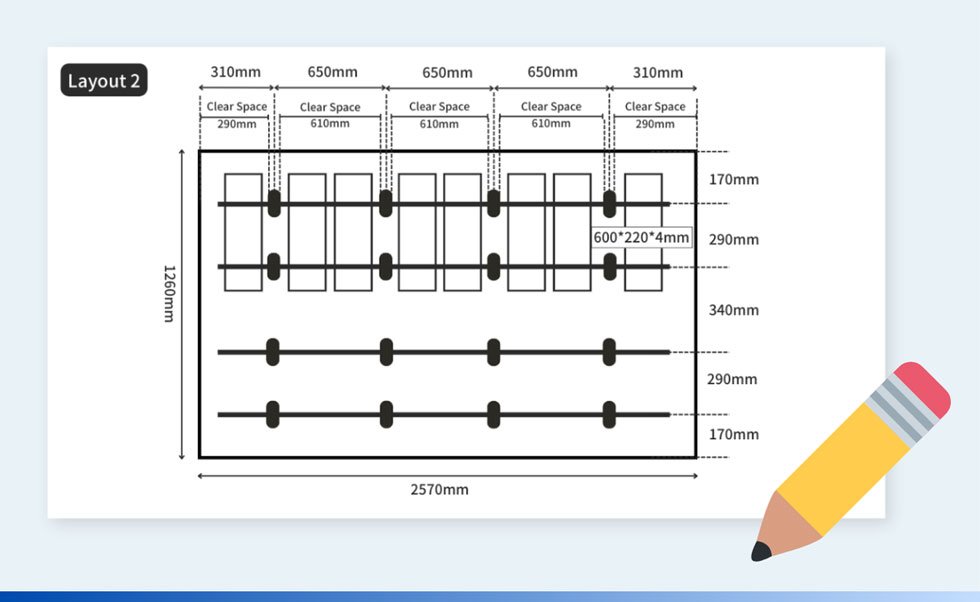

Yes. Beyond supplying individual components (shelves, posts, rods, beams, and rollers) and selection advice, we provide comprehensive system solutions. We can analyze your specific kiln car and production line conditions to recommend the optimal configuration and supply the complete assembly.
Do you support custom sizes and drawings?
Yes. We support custom sizes and can work from drawings or samples, including dimensions, thickness, structures, and matching sets.
What if I am not sure about the exact specifications I need?
No problem. Simply provide your operating environment (kiln type, temperature) and the type of ceramic ware you are firing. We will guide you through the selection process and propose a suitable design.
Can I request a sample or a trial order first?
Yes, we encourage testing before bulk purchase. We provide free samples for small quantities (shipping cost excluded) as well as small-batch trial orders, so you can validate the performance of our kiln furniture in your actual firing cycles.
Do you have a Minimum Order Quantity (MOQ)?
We offer flexible MOQ policies. While bulk orders offer the best cost-efficiency, we accommodate smaller quantities for specialized components or initial trials.
How do you ensure consistent quality for repeat orders?
We follow a standard pre-shipment inspection process and continuously refine key parameters based on in-factory use feedback, ensuring batch-to-batch consistency and stable delivery quality.
What is the typical lead time?
It depends. Standard items are often ready for quick dispatch. Custom orders typically require 3-5 weeks depending on complexity and production volume. We will provide a estimated timeline upon quoting.
How are products packed for export shipment?
We use export-grade seaworthy packaging, typically reinforced wooden cases with internal cushioning (foam/bubble wrap). For fragile items like SiC beams or rollers, we employ specialized spacing to eliminate movement during transit.
